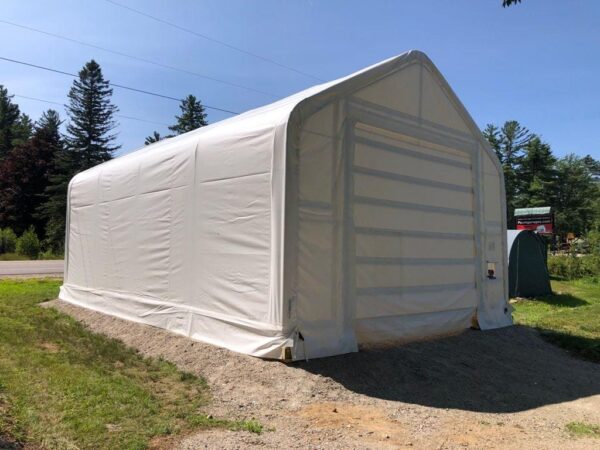

Description Complete Product DetailsComplete Product Details Exclusive Features Warren Trus Heavy-Duty Galvanized Steel Frame (2) Roll-Up Mechanical 12×12 Doors On Both Ends Wind Brace Support on Each Corner Double Cover Tensioning System Complete Anchoring System Included 12 oz. CPAI-84 Fabric Cover and Doors Arch spacing every 48 inches (4 foot spacing’s) Oval Tubular Piping Pipe Size Click Here for Fabric Details Click Here for Steel Tubing Details Standard Specifications Product Size 20’ Wide x 32’ Long x 16’ High Arches Seven (7) on 68” Spacing 2-3/8” diameter frame members Standard End Door Size 27’ Wide X 10’2″ High at edge triple zipper door each end Available Colors Outer Colors: White All Interiors: Bright White Only Shipping Weight 2200 lbs shipped in Nine (9) boxes Shipped via Motor Freight Stock Number 20x32x16-TR2203616RWHD Pallet Dimensions 41″ x 115 x 47″ Box Dimensions Box 1: 115″ Lx29″ Wx29″ High Box 2: 115″ Lx29″ Wx24″ High Main Cover 45mil Rip Stop UV Coated Vinyl Fabric Fire Retardant Standard Main Cover & Doors meet CPAI -84 Section 5 Anchors Fourteen (14) 36″ Anchors & Fourteen (14) Augers Included Stock Number 20x36x16- TR2203616RWHD Product Documentation the product spec sheet the single door assembly manual the two door assembly manual
